Golden Eye: Enhancing Semiconductor Yield with Automated Optical Inspection Data
Automated optical inspection (AOI) is a powerful quality improvement tool for screening out dies with any visual defect. It uses high-speed cameras, special lights, and smart software to analyze pictures of wafers, packaged chips, or PCBs and see if there’s anything wrong or missing. Since AOI is a noninvasive test, it doesn’t break anything while it checks and can be implemented at any stage of the manufacturing process, including in-line and end-of-line inspection.

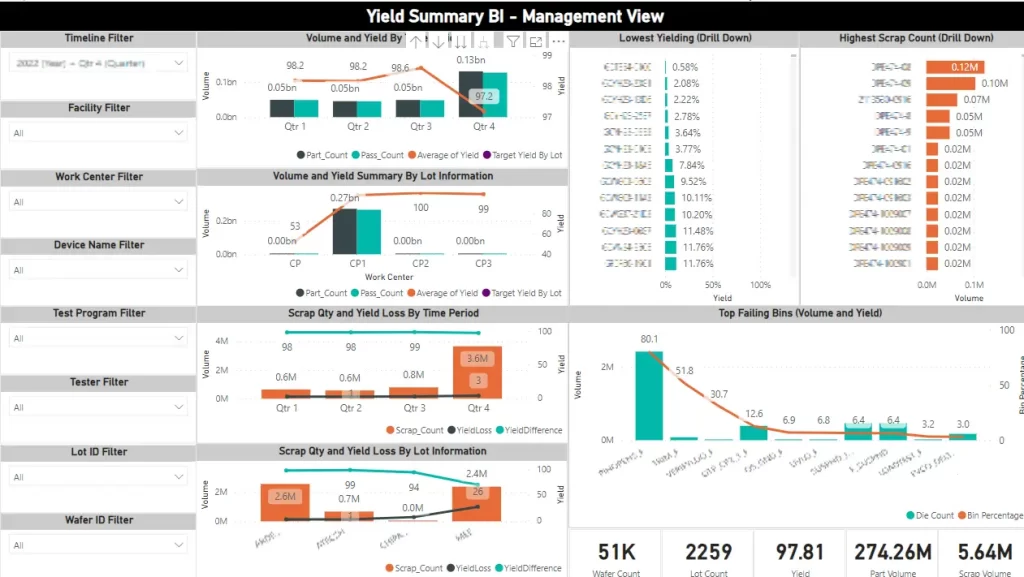

AOI systems generate invaluable data that when combined with insights from semiconductor yield management software can drastically improve product quality and reduce costs. yieldWerx offers powerful wafer mapping, inspection image management, and wafer merging solutions that allow IDMs and OSATs to make the most out of optical inspection data. Plus, you can also adjust initial assembly maps based on precise AOI feedback, aligning wafer maps with your operational efficiency objectives.
In this blog post, we’ll discuss the basic working mechanism of optical inspection systems, what they can detect, and how yieldWerx modules help you correlate wafer inspection data with parametric electrical tests so that you can minimize yield losses.
Your Yield Optimization Journey Starts Here. Contact Us Now!
What is a Typical Automated Optical Inspection System Like?

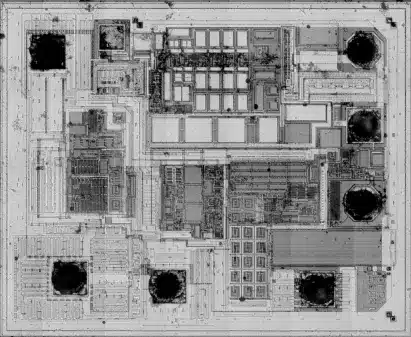

A typical automated optical inspection machine combines high-resolution cameras, advanced optics, and image processing algorithms to inspect wafers for visual defects. These systems work by capturing images of the wafer surface and comparing them against predefined design specifications. This often involves using “golden images” – perfect specimens of the product – or CAD data as a reference point. AOI tools are equipped with real-time data capture and can analyze thousands of dies on a single wafer within minutes.
The software algorithms in Automated Optical Inspection (AOI) systems are the intelligence driving their functionality, turning raw visual data into actionable insights. Pattern recognition compares captured images against templates to identify deviations with precision, image processing techniques like noise reduction and contrast enhancement improve image clarity, making defects more visible.
Decision-making algorithms then categorize defects and determine actions, using statistical analysis to minimize false positives. These adaptive algorithms continuously learn, refining detection capabilities to meet the growing complexities of modern manufacturing.
What Can AOI Detect?
AOI systems are capable of detecting a wide range of visual defects that affect semiconductor performance and reliability, such as:
- Surface Defects: Scratches, cracks, particles, and contamination.
- Pattern Defects: Misalignments, under-etching, over-etching, and bridging.
- Bump Defects: Missing, misaligned, or uneven solder bumps in advanced packaging.
- Edge Defects: Chipping, irregularities, or damage at the wafer edge.
By identifying these issues early, optical inspection machines prevent defective dies from progressing further in manufacturing, saving costs and improving overall yield.
Advanced Techniques to Correlate Wafer Inspection Data with Parametric Tests
Now let’s discuss the critical aspect of correlating visual defects observed during wafer inspection with parametric tests. Over the years, yieldWerx engineers have developed advanced data analysis techniques that can combine both these critical data streams to enhance semiconductor yield.
Manufacturers can pinpoint the exact processes causing defects by linking physical abnormalities with functional issues. Ultimately, they can safeguard reliability and customer satisfaction by ensuring only robust, defect-free die make it into final products. This capability transforms raw inspection and test data sets into actionable insights, driving yield improvement and cost efficiency.
Some of the common techniques used in this regard are:
1. Visual Overlay and Spatial Mapping
Initial investigations begin with aligning the AOI defect map with the electrical failure map. Picture the wafer as a chessboard where each square represents a die. Overlay the maps using die coordinates, and look for overlapping patterns. For instance, if you see scratches consistently aligning with high leakage currents, this could indicate a causal relationship.
2. Statistical Correlation
Use statistical methods like the Pearson Correlation, Regression, and Chi-square test to measure how strongly defects relate to failures. Represent your data in a table with columns for defects and failures, and calculate correlation values. If you find a strong correlation, it confirms a significant link between the two.
3. Heatmaps and Clustering
Create heatmaps to visualize where most defects and failures occur. Compare the defect heatmap with the failure heatmap to see if hotspots overlap. Clustering techniques can be used to group dies by defect types and performance metrics. This helps you uncover patterns that aren’t immediately visible.
4. Machine Learning-Based Prediction
Train a machine learning model to predict failures based on AOI data. Use defect characteristics (e.g., size, location) as input features and electrical test results (Pass/Fail) as the target variable. Once trained, your model can classify defects and predict potential failures for new AOI data.
5. Root Cause Analysis Through Filtering
Filter your data step by step to isolate specific defects causing failures. Group dies by defect type and failure parameter, and analyze them systematically. For example, check if dies with scratches fail more often or show higher leakage currents. Continue refining your filters until you pinpoint the root cause.
SuperCharge Your AOI Processes With the Inspection Image Management Module
yieldWerx’s Inspection Image Management module integrates inspection data and imagery into semiconductor manufacturing workflows. Its robust software enables you to:
- Automate image association with wafers and dies.
- Detect anomalies like scratches or particulates.
- Correlate inspection findings with test results for comprehensive quality assessments.
- Conduct root-cause analysis of yield excursions.
- Manage tool-agnostic image handling seamlessly.
This functionality empowers manufacturers to enhance process control and yield optimization effectively.
yieldWerx Smart Wafer Map Merge Module For Dataset Consolidation and Correlation
The Smart Wafer Map Merge Module (SWM) provides a precise and efficient solution for merging various wafer-related datasets, including AOI data, into a final consolidated map and dataset. The process traditionally relied on scripts and manual intervention. This approach quickly becomes labor-intensive, error-prone, and time-consuming.
You can eliminate these inefficiencies by providing an automated, streamlined approach to merging data from devices tested under various conditions. Furthermore, SWM empowers test houses to compute and store differences between key parameters and apply custom rules during data merging. The module ensures that the resulting merged wafer maps are saved as unique datasets within the yieldWerx database, allowing for quick traceability.
AOI Done Right With yieldWerx Wafer Mapping Module
Our wafer mapping module is a powerful tool that supports and optimizes AOI processes in semiconductor manufacturing. It provides seamless integration with MES systems to automate and synchronize wafer assembly maps, ensuring accurate configurations for optical inspection.
You can make real-time adjustments based on inspection results by performing post-test updates to wafer maps. This way, not only do you benefit from AOI data, but inspection systems also learn and adapt based on your inputs.
